Benchtop Selective Coating Machine AD-200 Features:

● The AD-200 is an automated desktop type selective coating robot with a precision narrow spraying valve and material tank to provide a desktop type slective coating solution.

● High quality step motor with high precision linear guide rail and it's driving system, ensure stable and precise run of motion system.

● Built in dispensing controller with independant air regulator.

● Equipped with 10L material pressure tank and 2L cleaning pressure tank.

● handheld teaching pendant with powerful software, all english interface, easy to operate.

● Powerful software has the painting point, straight line, multi line segment, three-dimensional arc (spatial arc), round, rectangular, runway, coating, automatic corner rounding, irregular 3D spline curve and other graphical elements; rich handmade teaching function and graphical preview function.

● Powerful software has route copy and array copy fuction, park loaction setting function, coordinate offset correction function, different dispensing height and lifting height setting function, pause and continue running fuction etc.

Items	Model	AD-200
Stroke(mm)	NumberofAxis	3
		(SingleheadX,Y,Z)
	X-aixs	380
	Y-aixs	250
	Z-aixs	80
Speed (mm/s)	XYaixs	300
Repeatability(mm)	Z-aixs	±0.06mm
Dimensions(mm)	WxDxH	720x700x800
Weight	NetWeight	80kg
Power source	Voltage/Frequency	AC220V,singlephase,50/60Hz
	Capacity	750 W
Motor	Type	Step motor
	Operation	MicroStep
Programming	Techingmethod	Hand-heldteachpendant,ManualDatainput
	Motioncontrol	PTP,CP(3dimensionalstraightline/circulararcinterpolation)
	Programcapacity	2G memory ,100 programs or instruction ≤8000
WorkingTemperature		0 - 40°C(32-104°F)
AirInput		5 Kg/cm²(approx.70psi)

Standard configuration

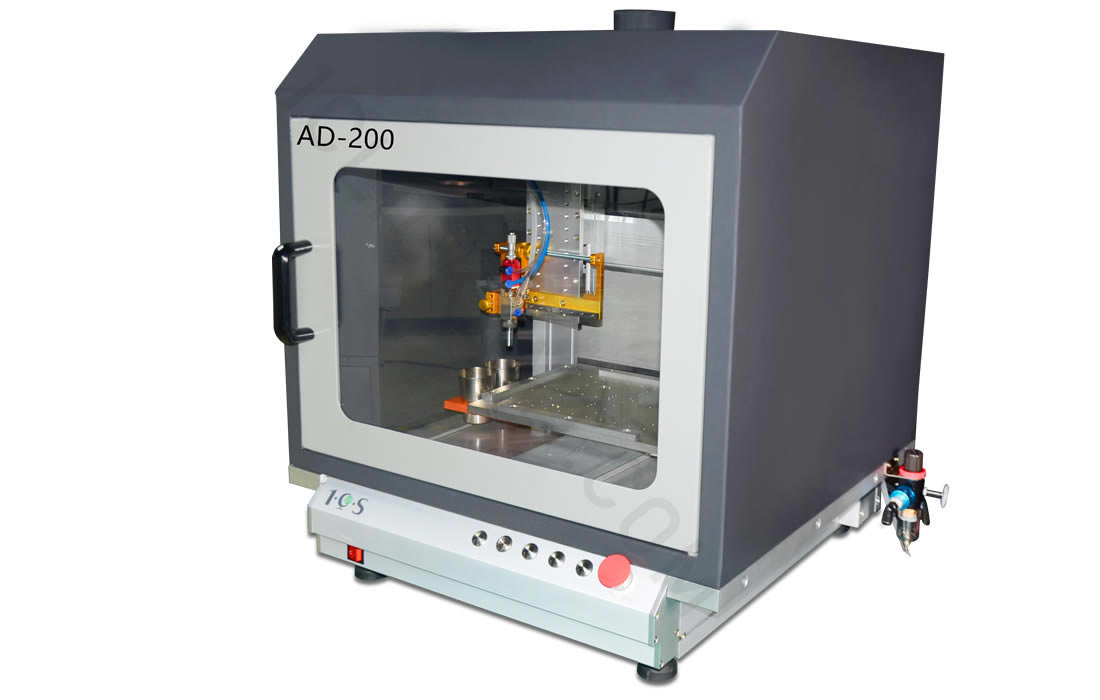

● Benchtop Selective Coating Machine AD-200.

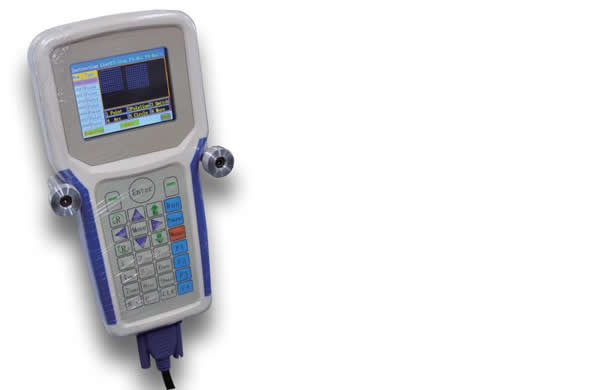

● Handheld teaching pendant.

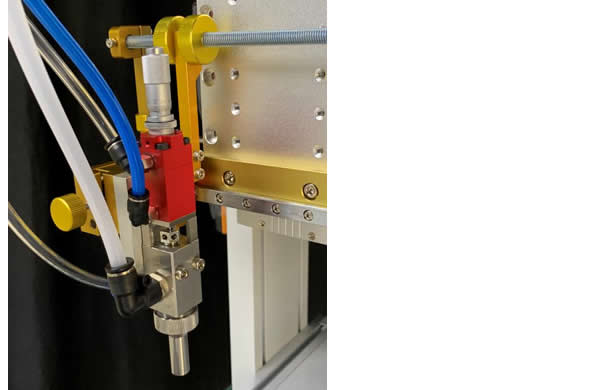

● V-1000 spray valve.

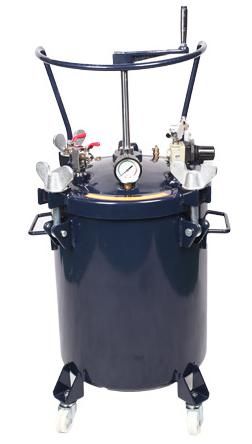

● 10L material pressure tank.

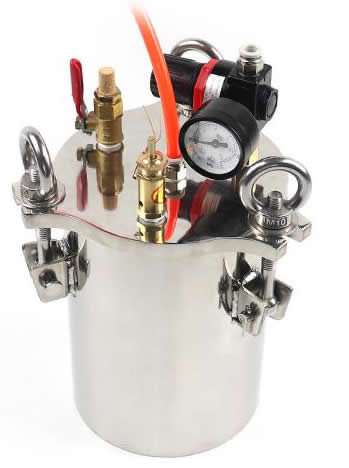

● 2L SUS cleaning pressure tank.

● Soaking cup * 1pcs.

● Purging cup * 1pcs.

● Enclosed cover.
