3 Axis Selective Coating Machine SC-345
Overview

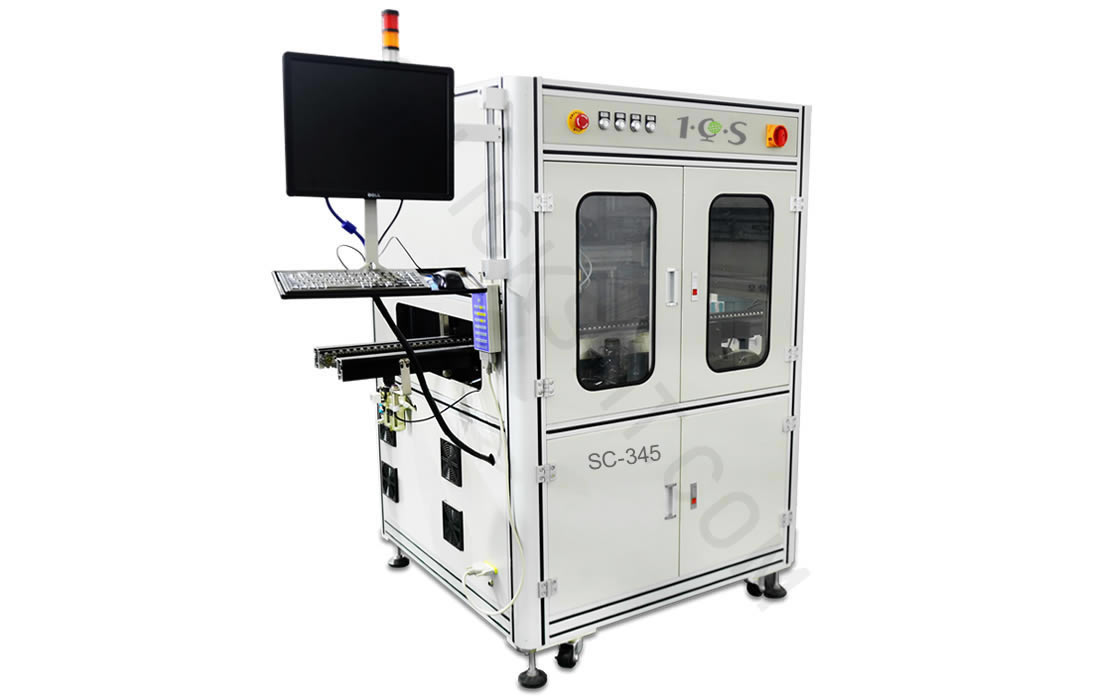

3 axis Selective Coating Machine SC-345 with precsion coating valve is a practical and affordable selective coating system, it adopt step motor and sychronous belt driving system which can ensure +-0.06mm repeatable accuray. the max coating area can reach 400mm*450mm.
● X,Y,Z axis with step motor and it's driving system.
● High precison coating valve.
● Max 400*450mm PCB width capable.
● Industrial PC and windows XP operation system, full English interface.
Features
3 axis Selective Coating Machine SC-345 with precsion coating valve is a practical and affordable selective coating system, it adopt step motor and sychronous belt driving system which can ensure +-0.06mm repeatable accuray. the max coating area can reach 400mm*450mm.
● X,Y,Z axis with step motor and it's driving system.
● High precison coating valve.
● Max 400*450mm PCB width capable.
● Industrial PC and windows XP operation system, full English interface.
Specification
| Model | SC-345 |
|---|---|
| Work Area | L400mm*W450mm |
| Axis number | X,Y,Z axis |
| Max Work Movement Speed | Max 500mm/s |
| Standard Valve | Narrow spray valve, needle valve |
| Max PCB Component Height | 70mm |
| Programming | manual teaching by valve |
| Positioning Accuracy | +/- 0.06mm |
| Repeatable Accuracy | +/- 0.06mm |
| Conveyor Height | 920mm±20mm |
| Conveyor direction | only left to right |
| Conveyor Speed | 0~3M/min |
| Width adjustment | Motorized width adjustment |
| Operation system | English Windows XP |
| Glue Tank | 10L glue tank *1set , 2L cleaning tank * 1set |
| Power Supply | AC220V 50~60Hz , 1P |
| Total Power | 2 KW |
| Air Requirement | 0.5-0.7Mpa |
| Overall Size W*D*H | L1270mm*W1100mm*H1700mm |
| Weight | 350KG |

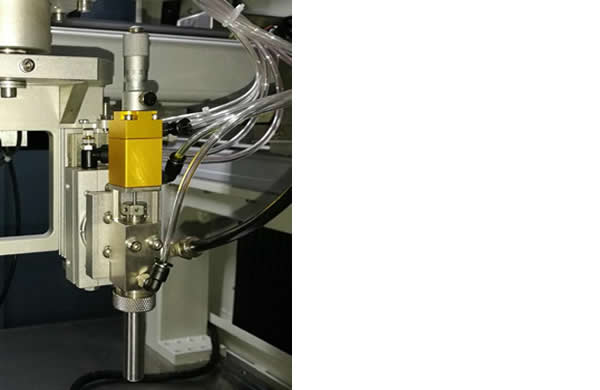

Valve options and specifications
|
Needle Dispensing valve |
Needle Dispensing valve is applied to areas where: ● 1. components are close to keep-out areas. ● 2. tall component require support. ● 3. extra glue is required. ● 4. glue is needed on the edge or under a component. |
|
|
|
|
● Dispensing line width: min. 2mm ● Air pressure: 0.1-0.4Mpa ● Applied to max viscosity of the glue: 1000cps |
|
|
Narrow spray valve |
● Coating thickness can be adjusted by changing air pressure and moving speed. ● Coating width can be adjusted by changing air pressure. ● Narrow spray valve is applied to areas where: 1.most of coating. |
|
|
|
|
● Spraying swath: 6-10mm ● edge definition: 1mm ● Valve stoke: 0.01mm-5mm ● Air pressure: 0.2-0.4Mpa ● Applied to max viscosity of the glue: 1000cps
|
|
|
Selective Coating Machine Valve specification |
|||
|
Valve parameter |
Needle valve | Narrow spray valve | Wide spray valve |
|
spraying swath |
1000 cps |
6-10mm |
15-30mm |
|
air pressure |
0.2-0.4Mpa |
0.2-0.4Mpa |
0.2-0.4Mpa |
|
applied to max glue viscosity |
1000 cps |
1000 cps |
1000 cps |
|
edge definition |
/ |
1mm |
3 mm |
|
applied to |
1.components are close to keep-out areas. |
1.atomazation film can be adjusted by air pressure and moving speed, applied to most of product. |
1. big spray swath, highefficiency, applied to large coating area without barrier |
|
2. tall component require support. |
|||
|
3. extra glue is required. |
|||
|
4. glue is needed on the edge or under a component. |
|||
Configuration
Standard configuration
● X/Y/Z 3 Axis Selective Coating Machine.
● Industrial PC, monitor, Keyboard,mouse.
● X/Y/Z step and it's driving system.
● Alarm light.
● Narrow spray valve *1set
● Needle valve *1set.
● Manual width adjustment system.
● 10L pressure tank *1set.
● 2L cleaning tank *1set.

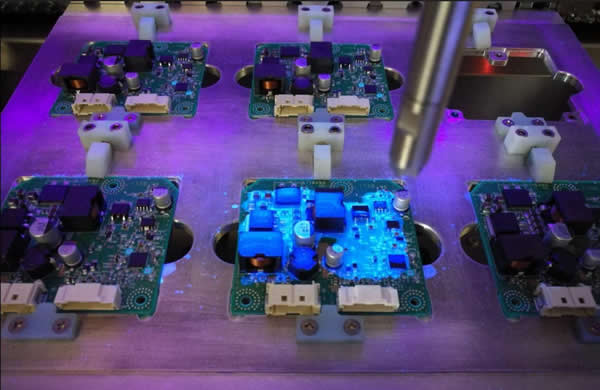

● Ultraviolet inspection lamp.
● 1 year parts warranty.
Optional configuration:
● Optional Configurations for Strengthening Performance:
● PCB clamping system 1set
● 10L pressure tank (for B glue tank) 1set
● Customized power supply 1PH, 110V/60HZ 1set
What options are available ?
Needle Dispensing valve
Dispensing line width:min. 1.5mm
Narrow spray valve
Spraying swath: 6-10mm
Wide spray valve
Spraying swath: 15-30mm
Film coating valve V-5000
Spraying swath: 8-15mm
Glue weighing system can avoid missing coating
Bar code reading system
Material Tank
10L material pressure tank. 2L cleaning pressure tank.
