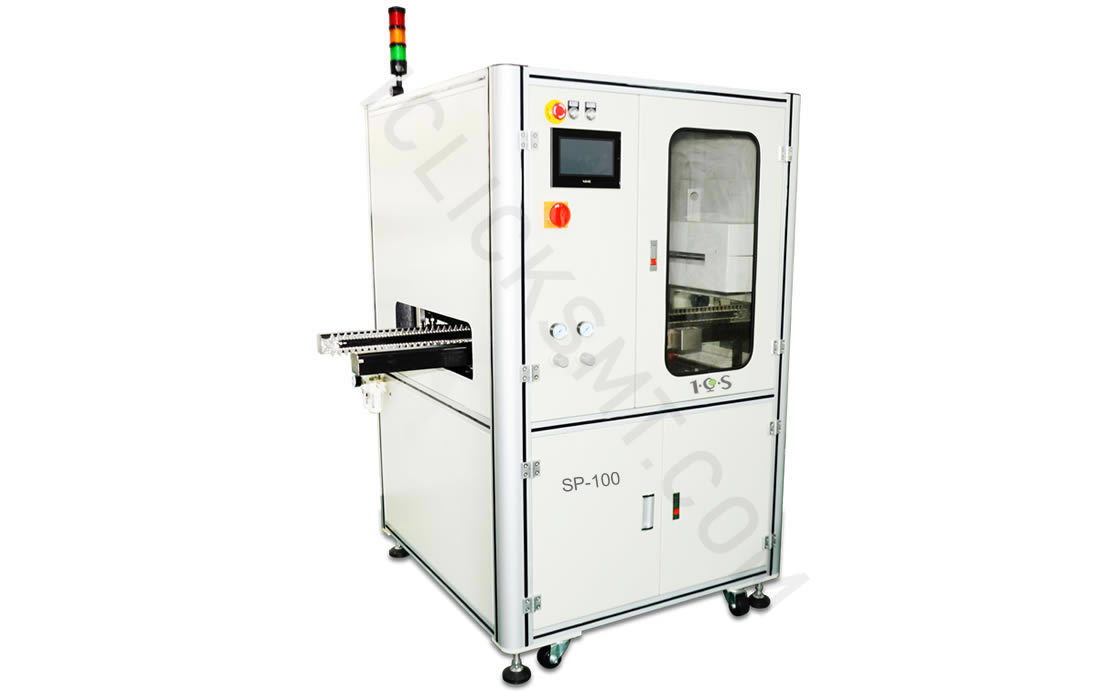

Economical PCB Coating machine SP-100

PCB Coating Machine SP-100 Features:

● Economical PCB Coating machine SP-100 with single wide coating valve which coat the PCB board back and forth very quickly , the PCB conveying speed is adjustable , it is very suitalbe for whole big board coating process . the max coating area can reach 400mm*450mm.

● High precision wide spray valve can meet high precision coating requirements.

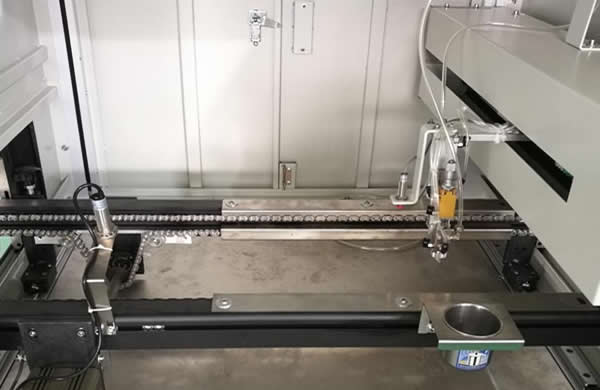

● Step motor with sychronous belt driven mechanism.

● Manual rail width adjustment mechanism.

● Equipped with UV inspection light.

● PLC and touch screen control, full english interface ,very easy to use.

● Standard equipped with 10L pressure tank *1set and 2 L cleaning tank *1set.

Model	SP-100
Work Area	L400mm*W450mm
Axis number	single axis with step motor and sychronous belt control
Standard Valve	Wide spray valve
Optional Valve	Narrow spray valve
Coating thicknesse	0.03 - 1mm
Max PCB Component Height	70mm
Programming	Input parameter
Conveyor Height	920mm±20mm
Conveyor direction	only left to right
Conveyor Speed	0-3M/min
Width adjustment	Manual width adjustment
Operation system	PLC and touch screen
Glue Tank	10L glue tank1set, 2L cleaning tank 1 set
Power Supply	AC220V 50~60Hz , 1P
Total Power	1 KW
Air Requirement	0.5-0.7Mpa
Overall Size WDH	L1180mmW920mmH1700mm
Weight	260KG

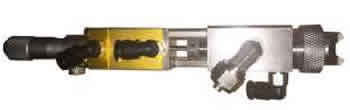

Wide spray valve	● big spray swath, high efficiency. Coating thickness can be adjusted by changing air pressure and moving speed. ● Coating width cand be adjusted by changing air pressure. ● wide spray valve is applied to areas where: 1.large coating area without barrier.

● Spraying swath: 15-30mm ● edge definition: 3mm ● Air pressure: 0.1-0.4Mpa ● Applied to max viscosity of the glue: 1000cps

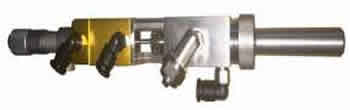

Narrow spray valve	● Coating thickness can be adjusted by changing air pressure and moving speed. ● Coating width can be adjusted by changing air pressure. ● Narrow spray valve is applied to areas where: 1.most of coating.

● Spraying swath: 6-10mm ● edge definition: 1mm ● Valve stoke: 0.01mm-5mm ● Air pressure: 0.2-0.4Mpa ● Applied to max viscosity of the glue: 1000cps

Selective Coating Machine Valve specification
Valve parameter	Narrow spray valve	Wide spray valve
spraying swath	6-10mm	15-30mm
air pressure	0.2-0.4Mpa	0.2-0.4Mpa
applied to max glue viscosity	1000 cps	1000 cps
edge definition	1mm	3mm
applied to	1. atomazation film can be adjusted by air pressure and moving speed, applied to most of product.	1.big spray swath, highefficiency, applied to large coating area without barrier.
